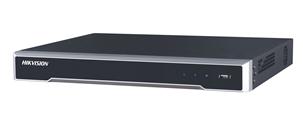

CCTVSG.NET HikVision Embedded Plug & Play 4K NVR

• Third-party network cameras supported• Up to 8 Megapixels resolution recording• Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840×2160)resolution• 8/16-ch network cameras can be connected with80M/160M incoming bandwidth• Up to 2 SATA interfaces• Plug & Play with up to 16 independent PoE networkinterfaces• Support dual-os to ensure high reliablility of systemrunning•Support various VCA detection alarm and VCA search•Support H.265/H.264/MPEG4 video formats

Contact us for more info: 6297 0676 / 9379 9806

SKU: DS-7R16NI-K2/16P Categories: , Tags: , , ,
Hikvision Logo

Description

Hikvision CCTVSG.NET HikVision Embedded Plug & Play 4K NVR DS-7R16NI-K2/16P

Video/Audio Input
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ)
IP video input: 16-ch
Network
Incoming bandwidth: 160Mbps
Outgoing bandwidth: 160Mbps
Video/Audio Output
HDMI Output: 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output: 1-ch, RCA (Linear, 1kΩ)
VGA Output: 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Decoding
Capability: 8-ch@1080P
Live view / Playback: 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Hard Disk
SATA: 2 SATA interfaces for 2 HDDs
Capacity: Up to 6TB capacity for each HDD
External Interface
Network Interface: 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface: 2, USB2.0
Alarm In: 4-ch
Alarm Out: 1-ch
POE
Interface: 8 independent 10 /100 Mbps PoE Ethernet interfaces
General
Power Supply: 100 to 200 VAC
Consumption(without hard disk and POE): ≤ 15 W
Working Temperature: -10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity: 10 % ~ 90 %
Chassis: 385 mm chassis
Dimensions: 385 × 315× 52 mm (15.2″ 12.4″ 2.0″)
Weight(without HDD): ≤ 3 kg (6.6 lb)
