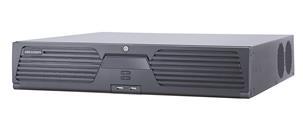

CCTVSG.NET HikVision DeepinMind Series NVR iDS-9600NXI-I8/16S
• False alarm filtering for up to 16-ch behavior detection
• 320/256 Mbps bit rate input/output(up to 32-ch IP camera input)
• Up to 12MP resolution recoding/live view
• H.265+/H.265/H.264+/H.264 video formats self-adapt
• 8-ch 1080P decoding capability
• HDMI output at up to 4K resolution
• Up to 8 SATA interfaces, up to 8 TB for each HDD
• HDD hot swapping with RAID 0/1/5/6/10
Contact us for more info: 6297 0676 / 9379 9806
Description
Hikvision CCTVSG.NET HikVision DeepinMind Series NVR
iDS-9600NXI-I8/16S
iDS-9600NXI-I8/16S
| Video/Audio Input | ||
|---|---|---|
| Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) | |
| IP video input: | 32-ch | |
| Network | ||
|---|---|---|
| Outgoing bandwidth: | 256Mpbs or 200Mbps(when RAID is enabled) | |
| Incoming bandwidth: | 320Mbps or 200Mbps(when RAID is enabled) | |
| Video/Audio Output | ||
|---|---|---|
| HDMI/VGA output: | 2-ch, resolution: HMDI1/VGA1:HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI2/VGA2:1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
| CVBS Output: | 1-ch, BNC(1.0Vp-p, 75Ω) Resolution: 704×576(PAL); 704×480(NTSC) |
|
| Synchronous Playback: | 16-ch | |
| Decoding | ||
|---|---|---|
| Live view / Playback: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Capability: | 8-ch@1080P | |
| Hard Disk | ||
|---|---|---|
| SATA: | 8 SATA interfaces for 8 HDDs | |
| eSATA: | 1 eSATA interface | |
| Capacity: | Up to 8TB capacity for each HDD | |
| Disk array | ||
|---|---|---|
| Array type: | RAID0, RAID1, RAID5, RAID6, RAID10 | |
| Number of array: | 4 | |
| External Interface | ||
|---|---|---|
| Network Interface: | 2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces | |
| Serial Interface: | RS-232, RS-485, Keyboard | |
| USB Interface: | Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0 |
|
| Alarm In: | 16-ch | |
| Alarm Out: | 4-ch | |
| POE | ||
|---|---|---|
| Max. Power: | 200W | |
| General | ||
|---|---|---|
| Power Supply: | 100 to 240 VAC, 50 to 60 Hz | |
| Consumption(without hard disk and POE): | ≤ 70 W | |
| Working Temperature: | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) | |
| Working Humidity: | 10 % ~ 90 % | |
| Chassis: | 19-inch rack-mounted 2U chassis | |
| Dimensions: | 445 × 470 ×90 mm (17.5″× 18.5″ × 3.5″) | |
| Weight(without HDD): | ≤ 10 kg (22 lb) | |
