CCTVSG.NET HikVision 5 MP IR Vari-focal Network Bullet Camera
• 1/2.9″ Progressive Scan CMOS
• 2944 × 1656 resolution
• 2.8 to 12 mm focal length
• H.265, H.265+, H.264+, H.264
•120dB Wide Dynamic Range
• BLC/3D DNR/ROI
• IP67, IK10
• 4 behavior analyses and face detection
Contact us for more info: 6297 0676 / 9379 9806
Description

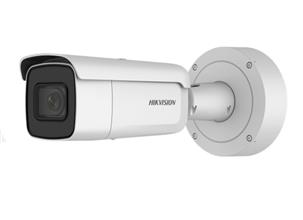

Hikvision CCTVSG.NET HikVision 5 MP IR Vari-focal Network Bullet Camera DS-2CD2655FWD-IZS
Camera | ||
---|---|---|
Image Sensor: | 1/2.9″ Progressive Scan CMOS | |
Signal System: | PAL/NTSC | |
Min. Illumination: | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR |
|
Shutter time: | 1/3 s to 1/100,000 s | |
Slow shutter: | Support | |
Lens: | 2.8 to 12 mm Horizontal field of view: 88° to 27° Vertical field of view: 48° to 16° Diagonal field of view: 104° to 32° |
|
Lens Mount: | φ14 | |
Adjustment Range: | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° | |
Day& Night: | IR Cut Filter | |
Wide Dynamic Range: | 120 dB | |
Digital noise reduction: | 3D DNR | |
Focus: | Auto |
Compression Standard | ||
---|---|---|
Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG | |
Video bit rate: | 32Kbps~16Mbps | |
Audio Compression: | G.711/G.722.1/G.726/MP2L2/PCM | |
Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) | |
Triple Streams: | Yes |
Image | ||
---|---|---|
Max. Image Resolution: | 2944 × 1656 | |
Frame Rate: | 50Hz: 20 fps (2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 ×720) 60Hz: 20 fps (2944 × 1656), 30 fps (2560 × 1440, 1920 × 1080, 1280 ×720) |
|
Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
|
Third Stream: | 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240) |
|
Image Enhancement: | BLC/3D DNR/BLC | |
Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | |
ROI: | Support 1 fixed region for main stream and sub stream separately | |
Day/Night Switch: | Day/Night/Auto/Schedule/Triggered by Alarm In |
Network | ||
---|---|---|
Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
Alarm Trigger: | Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login | |
Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,IGMP, 802.1X, QoS, IPv6, Bonjour | |
General Function: | One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video mask, Watermark, IP address filtering |
|
System Compatibility: | ONVIF (Profile S, Profile G), ISAPI |
Interface | ||
---|---|---|
Audio: | 1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound | |
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
Alarm: | 1 input, 1 output (max. 12 VDC, 30 mA), terminal block | |
Video Output: | 1Vp-p Composite Output (75 Ω, BNC) | |
On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
Reset Button: | Yes |
Audio | ||
---|---|---|
Environment Noise Filtering: | Support | |
Audio Sampling Rate: | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
Smart Feature-set | ||
---|---|---|
Behavior Analysis: | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection | |
Line Crossing Detection: | Cross a pre-defined virtual line | |
Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials | |
Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. | |
Exception Detections: | Scene change detection | |
Recognition: | Face Detection |
General | ||
---|---|---|
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) | |
Power Consumption: | 12 VDC, 1.3A, max. 15.5W PoE (802.3at, 42.5V to 57V), 0.5A to 0.1A, max. 17.5W |
|
Impact Protection: | IK10 | |
Weather Proof: | IP67 | |
IR Range: | Up to 50m | |
Dimensions: | Φ144.13×332.73 mm (Φ5.67″× 13.10″) | |
Weight: | Camera: 1893 g (4.17 lb.) |
We are experienced CCTV wholesaler and service provider,
Contact us for more information and further discount:
Tel: 6297 0676
HP: 9379 9806 / 8766 6376
Brand
HIKvision
Hikvision is the world’s leading supplier of video surveillance products and solutions. Featuring the industry’s strongest R&D workforce, Hikvision uses its state-of-the-art manufacturing facilities to design and develop innovative CCTV and video surveillance products. The company’s complete product suite includes Smart IP cameras, HD analog cameras, speed domes, NVRs, DVRs, video management software, access control and alarm systems, encoders, decoders, and other elements of sophisticated security systems and CCTV technology for any security need. Hikvision products serve a diverse set of vertical markets that includes retail, banking and finance, transportation, education, commercial, government, and residential applications.
