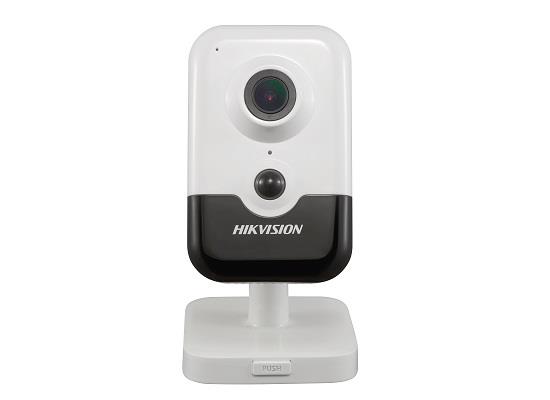

CCTVSG.NET HikVision 5 MP IR Fixed Cube Network Camera
• 2944 × 1656@20fps
• IR: 10 m
• PIR: 10m
• H.265, H.265+
•120dB WDR
• Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
• PoE
• EXIR
• Wi-Fi (Optional)
Contact us for more info: 6297 0676 / 9379 9806
Description
Hikvision CCTVSG.NET HikVision 5 MP IR Fixed Cube Network Camera DS-2CD2455FWD-I(W)
Camera | ||
---|---|---|
Image Sensor: | 1/2.9″ Progressive Scan CMOS | |
Signal System: | PAL/NTSC | |
Min. Illumination: | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR |
|
Shutter time: | 1/3 s to 1/100,000 s | |
Slow shutter: | Support | |
Lens: | 2.8 mm: Horizontal field of view: 97°, Vertical field of view: 54°, Diagonal field of view: 113° | |
Lens Mount: | M12 | |
Adjustment Range: | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° | |
Day& Night: | IR cut filter with auto switch | |
Wide Dynamic Range: | 120 dB | |
Digital noise reduction: | 3D DNR | |
Focus: | Fixed |
Compression Standard | ||
---|---|---|
Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG | |
Video bit rate: | 32Kbps~16Mbps | |
Audio Compression: | G.711/G.722.1/G.726/MP2L2/PCM | |
Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) | |
Triple Streams: | Yes |
Image | ||
---|---|---|
Max. Image Resolution: | 2944 × 1656 | |
Frame Rate: | 50Hz: 20 fps (2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
|
Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
|
Third Stream: | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
|
Image Enhancement: | BLC/3D DNR/BLC | |
Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | |
ROI: | Support 1 fixed region for main stream and sub-stream separately | |
Day/Night Switch: | Day/Night/Auto/Schedule |
Network | ||
---|---|---|
Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 | |
General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
|
System Compatibility: | ONVIF (Profile S, Profile G), ISAPI |
Interface | ||
---|---|---|
Audio: | 1 built-in mic, 1 built-in speaker, mono sound | |
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
Reset Button: | Yes |
Audio | ||
---|---|---|
Environment Noise Filtering: | Support | |
Audio Sampling Rate: | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
Smart Feature-set | ||
---|---|---|
Behavior Analysis: | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection | |
Line Crossing Detection: | Cross a pre-defined virtual line | |
Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials | |
Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. | |
Exception Detections: | Scene change detection | |
Recognition: | Face Detection |
Wi-Fi Specification (-W) | ||
---|---|---|
Wireless Standards: | IEEE802.11b, 802.11g, 802.11n | |
Frequency Range: | 2.412 GHz to 2.4835 GHz | |
Channel Bandwidth: | 20/40MHz Support | |
Transmission Rate: | 11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps |
|
Wireless Range: | 50m(depend on environment) | |
Protocols: | 802.11b: DQPSK, DBPSK, CCK 802.11g/n: OFDM /64-QAM,16-QAM, QPSK, BPSK |
General | ||
---|---|---|
Operating Conditions: | -10 °C – 40°C (14 °F – 104 °F), Humidity 95% or less (non-condensing) | |
Power Supply: | 12 V DC ± 20%, PoE (802.3af, class 3) | |
Power Consumption: | 12 VDC, 0.47A, max. 7W PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7W |
|
IR Range: | Up to 10m | |
PIR: | 10m | |
Dimensions: | 102.8 mm × 65.2 mm × 32.6 mm (4.05″ × 2.57″ × 1.28″) | |
Weight: | Camera: Approx. 128 g (0.28 lb) |
We are experienced CCTV wholesaler and service provider,
Contact us for more information and further discount:
Tel: 6297 0676
HP: 9379 9806 / 8766 6376
Brand
HIKvision
Hikvision is the world’s leading supplier of video surveillance products and solutions. Featuring the industry’s strongest R&D workforce, Hikvision uses its state-of-the-art manufacturing facilities to design and develop innovative CCTV and video surveillance products. The company’s complete product suite includes Smart IP cameras, HD analog cameras, speed domes, NVRs, DVRs, video management software, access control and alarm systems, encoders, decoders, and other elements of sophisticated security systems and CCTV technology for any security need. Hikvision products serve a diverse set of vertical markets that includes retail, banking and finance, transportation, education, commercial, government, and residential applications.
